How to Manage Thermal Glazing: A Guide to High-Performance

Managing the thermal performance of glass is not merely a matter of selecting a product from a manufacturer’s catalog. It is a nuanced exercise in balancing conductive, convective, and radiant heat flux. Every specification choice—from the thickness of the air gap in an insulating glass unit (IGU) to the chemical composition of microscopic metallic coatings—has a cascading effect on the building’s mechanical systems, occupant comfort, and long-term structural integrity. How to Manage Thermal Glazing. When these variables are mismanaged, the results are felt in excessive cooling loads, persistent condensation, and the potential for spontaneous glass fracture due to thermal stress.

This analysis explores the systemic frameworks required to oversee the lifecycle of high-performance fenestration. By moving beyond surface-level metrics like $U$-values and $R$-values, we can begin to understand the deeper physics of the transparent skin. We will examine the integration of advanced material science with practical maintenance governance, providing a definitive reference for those tasked with ensuring that a building’s most vulnerable thermal points remain its most resilient assets.

Understanding “how to manage thermal glazing”

In the professional lexicon, the inquiry of how to manage thermal glazing is an integrated discipline that combines material science, mechanical engineering, and facility management. It is a departure from the “install and forget” mentality of traditional construction. To manage these systems effectively, one must recognize that glass is a dynamic material that reacts to its environment in real-time. Effective management begins with the alignment of the glass’s optical properties—such as its Solar Heat Gain Coefficient ($SHGC$)—with the building’s geographic orientation and internal programmatic needs.

A common misunderstanding in the industry is the belief that thermal management is purely about insulation. While stopping heat from escaping in winter is vital, managing the radiant energy that enters in summer is often a much more complex engineering feat. If a glazing system is “over-insulated” but lacks proper solar control, it can trap heat indoors, leading to a “greenhouse effect” that forces the HVAC system to work overtime even in temperate weather. Understanding this balance is the first step toward a resilient facade strategy.

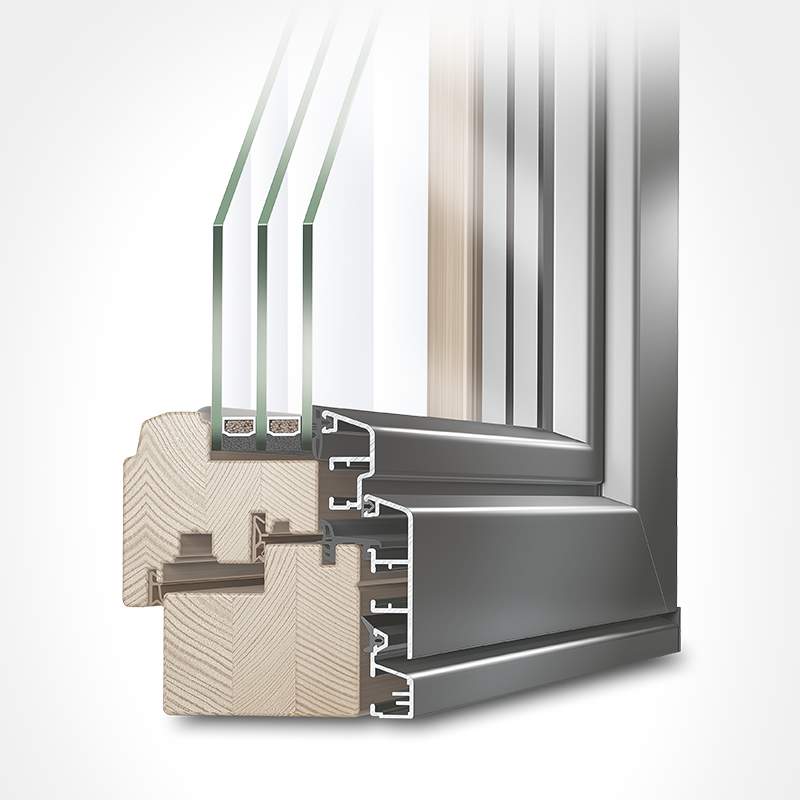

Furthermore, oversimplification often occurs when stakeholders treat the center-of-glass performance as the total system performance. A high-performance triple-glazed unit is only as effective as its edge-of-glass seals and the thermal breaks within its aluminum or steel frame. Managing the thermal envelope requires a holistic view where the glass, the spacer, the gas fill, and the frame are treated as a single, unified thermal machine. Ignoring the thermal bridges at the frame interface is a primary cause of localized condensation and systemic energy loss.

Deep Contextual Background: The Evolution of the Thermal Skin

The history of glazing is a narrative of the struggle against heat transfer. For centuries, windows were the “thermal holes” of a building. Early sheet glass provided protection from wind and rain but offered almost zero resistance to heat loss. The mid-20th century marked a turning point with the invention of the float glass process, which allowed for larger, flatter panes, but it was the energy crises of the 1970s that forced the industry to innovate.

The first major leap was the democratization of the Insulating Glass Unit (IGU). By sealing a pocket of dry air between two panes of glass, manufacturers could effectively halve the $U$-value of a window. This was followed by the development of Low-Emissivity (Low-E) coatings—microscopic layers of silver or other metals that reflect long-wave infrared radiation. These coatings allowed glass to be “spectrally selective,” letting in visible light while reflecting the heat that would otherwise warm a room.

Today, the context is defined by the pursuit of “Net Zero” performance. We are seeing the rise of vacuum-insulated glazing (VIG), which achieves the thermal resistance of a solid wall in a profile no thicker than a single pane of glass. Additionally, “smart” glass technologies, such as electrochromic glazing, allow the building’s skin to change its tint in response to real-time solar intensity, moving thermal management from a passive state to an active, responsive one.

Conceptual Frameworks and Mental Models

To evaluate the efficacy of a glazing plan, practitioners utilize several mental models that predict how heat will move through the assembly.

1. The Radiant Heat Barrier Framework

This model views glass not as a solid barrier, but as a filter for the electromagnetic spectrum. It prioritizes the reflection of infrared energy before it can be absorbed by the glass substrate.

• Limit: High-reflectivity coatings can cause external “hot spots” on neighboring buildings, a phenomenon known as solar glare.

2. The Thermal Bridge Audit

A mental model focused on the path of least resistance. It assumes that heat will bypass the glass and travel through the framing or the metal spacers at the edge of the unit.

• Application: This logic leads to the specification of “warm-edge” spacers made of stainless steel or thermoplastic rather than conductive aluminum.

3. The Condensation Resistance Model

This framework defines success not by energy savings, but by the prevention of moisture at the dew point. It calculates the interior surface temperature of the glass relative to indoor humidity levels.

• Limit: This model can be undermined by poor air circulation near the glass, such as when heavy drapes or furniture block the movement of indoor air.

Key Categories and Technical Variations

When determining how to manage thermal glazing, the specification usually falls into one of several primary technological categories, each involving distinct trade-offs.

Glazing Category	Primary Thermal Mechanism	Major Trade-off	Ideal Climate
Double IGU (Air)	Convective dampening.	Minimal insulation in extreme cold.	Temperate.
Double IGU (Argon)	Dense gas reduces conduction.	Gas leaks at approx. 1% per year.	Northern Hemisphere.
Triple IGU (Krypton)	Ultra-dense gas; two air gaps.	Significant weight; requires heavy framing.	Arctic/Sub-arctic.
Low-E (Hard Coat)	Pyrolytic coating; durable.	Slightly lower thermal performance.	Commercial/Industrial.
Low-E (Soft Coat)	Sputtered silver; high performance.	Fragile; must be sealed inside an IGU.	Residential/High-end Office.
Vacuum Insulated (VIG)	Elimination of all conduction/convection.	High cost; visible support pillars.	Heritage retrofits.

Decision Logic for Assembly Selection

The choice between these categories is driven by the “Return on Carbon” (ROC). In some cases, the embodied carbon required to manufacture a triple-glazed unit is so high that it takes decades of energy savings to break even. For a high-rise in a tropical climate, the focus shifts away from $U$-values toward a low $SHGC$, where the goal is to block solar radiation before it enters the building’s cooling loop.

Detailed Real-World Scenarios How to Manage Thermal Glazing

Scenario A: The Shaded High-Rise

A commercial tower in a dense city where neighboring buildings cast long shadows throughout the day.

• Constraint: The glazing undergoes rapid “thermal shock” as shadows move across the facade.

• Decision Path: Specify heat-strengthened glass with a neutral Low-E coating. Avoid high-absorption tints that would increase internal glass temperature.

• Second-Order Effect: Because the shadows reduce solar gain, the building may require a higher $U$-value to retain internal heat from computers and people during the winter.

Scenario B: The Coastal Residential Development

A luxury apartment complex with floor-to-ceiling glass facing the ocean.

• Constraint: High salt-spray exposure and extreme wind loads.

• Decision Path: Laminated IGU with a stainless steel warm-edge spacer. The lamination provides structural safety, while the spacer prevents the cold sea air from causing condensation on the interior.

• Failure Mode: If the edge seals are not compatible with the salt environment, the IGU will fail prematurely, leading to internal fogging that ruins the ocean view.

Planning, Cost, and Resource Dynamics

The economic management of thermal glazing is frequently misunderstood as a simple CapEx (Capital Expenditure) calculation. In reality, the “best” glazing is often the one with the lowest lifecycle cost.

Cost Component	Relative Impact	Variability Factors
Procurement	40%	Coating complexity, number of panes, gas fill type.
Framing Integration	25%	Thermal break depth, sealant compatibility.
Installation	20%	Weight of the units (Triple-glazing requires cranes).
Maintenance/Cleaning	10%	Accessibility, specialized coating requirements.
Replacement Reserve	5%	Expected lifespan of the primary IGU seals.

The Opportunity Cost of Under-Specification

Specifying a standard double-pane window to save 15% on procurement can lead to a 30% increase in the required size of the building’s chiller and boiler systems. This is a permanent “tax” on the building’s operational budget that can never be recovered without a full, and much more expensive, facade replacement.

Tools, Strategies, and Support Systems

Managing these systems at scale requires a suite of technical tools to verify that the design intent is being met on-site.

1. LBNL THERM/WINDOW: The industry-standard software for calculating the $U$-values of complex window sections.

2. Infrared Thermography: A non-destructive testing method used after installation to identify thermal leaks or failed gas fills.

3. BIM (Building Information Modeling): Tracks the specific performance data for every individual window unit across a large development.

4. Desiccant Management: A strategy to ensure the moisture-absorbing material inside the spacer remains active for the duration of the unit’s 25-year warranty.

5. Gas-Fill Sensors: Tools used during fabrication to verify that the argon or krypton concentration meets the 90%+ requirement.

6. Pressure-Equalized Rainscreen Logic: A strategy for the framing that prevents water from being “sucked” into the thermal break by air pressure differences.

Risk Landscape and Failure Modes

The “failure” of thermal glazing is rarely dramatic, like a broken pane. Instead, it is a slow degradation of performance that often goes unnoticed until it is too late.

• Desiccant Exhaustion: When the primary seal fails, moisture enters the IGU. The desiccant eventually becomes saturated, leading to internal “fogging.”

• Argon Depletion: IGUs naturally lose about 1% of their gas per year. If the seal is poor, this rate accelerates, and the window’s $U$-value begins to climb.

• Thermal Stress Fracture: Occurs when there is a significant temperature difference between the center of the glass and the edge (often caused by internal heating vents blowing directly on the glass).

• Sealant Incompatibility: Using a silicone sealant that reacts with the Low-E coating or the laminated interlayer, causing delamination or “creeping” of the coating.

Governance, Maintenance, and Long-Term Adaptation

A glazing system is a 30-to-50-year investment. Proper governance ensures that the performance specified at Day 1 remains at Day 10,000.

The Maintenance Lifecycle

• Annual Audit: Check the perimeter caulking for cracks or debonding. A failure in the caulking allows cold air to hit the frame, causing condensation.

• Bi-Annual Cleaning: Use pH-neutral cleaners. Avoid abrasive tools that can scratch the delicate Low-E coatings if they are on an exposed surface (Position 1 or 4).

• 5-Year Thermal Scan: Use a drone-mounted infrared camera to audit the entire facade for failed units.

Adjustment Triggers

If occupants report “downdrafts” near windows in winter, it is a sign that the interior surface temperature of the glass has dropped below the comfort threshold, likely due to gas loss or a failed thermal break in the frame. This should trigger an immediate thermal audit.

Measurement, Tracking, and Evaluation

How do we prove that the strategy for how to manage thermal glazing is successful? We use both qualitative and quantitative signals.

• Quantitative Signals: Monitoring the energy consumption of the building’s perimeter zones. If the heating/cooling load is significantly higher than the central core, the glazing is likely the cause.

• Qualitative Signals: Occupant comfort surveys. “Cold spots” or excessive glare are indicators of a performance gap.

• Leading Indicators: Factory certification of gas-fill levels and seal integrity testing (ASTM E2190).

• Lagging Indicators: The number of IGU units replaced under warranty due to seal failure.

Common Misconceptions and Oversimplifications

• Myth: “Triple glazing is always the best option.”

  • Correction: In some climates, the added weight and cost provide a diminishing return on energy savings. Double glazing with advanced coatings is often more efficient.

• Myth: “Condensation on the outside means the window is failing.”

  • Correction: External condensation actually means the window is working perfectly; it is preventing heat from reaching the outer pane, keeping it cool.

• Myth: “Darker glass is better at blocking heat.”

  • Correction: Modern spectrally selective coatings can be nearly clear while blocking more heat than dark-tinted glass.

• Myth: “Argon gas is toxic if the window breaks.”

  • Correction: Argon is an inert, non-toxic gas that makes up about 1% of the air we breathe every day.

Conclusion

The pursuit of thermal efficiency in glazing is a balance of contradictory forces. We demand transparency but require insulation; we seek natural light but must reject solar heat. The most successful strategies for the future will move away from static glass toward “responsive” facades that can adapt to the shifting environment.

Ultimately, managing thermal glazing is an exercise in technical rigor. It requires a deep understanding of thermodynamics, a commitment to high-quality installation, and a proactive approach to maintenance. By treating the transparent envelope not as a commodity, but as a sophisticated piece of building technology, we can create structures that are not only beautiful but are truly resilient in the face of a changing climate.
