Architectural Glazing Systems Guide: A Professional Engineering

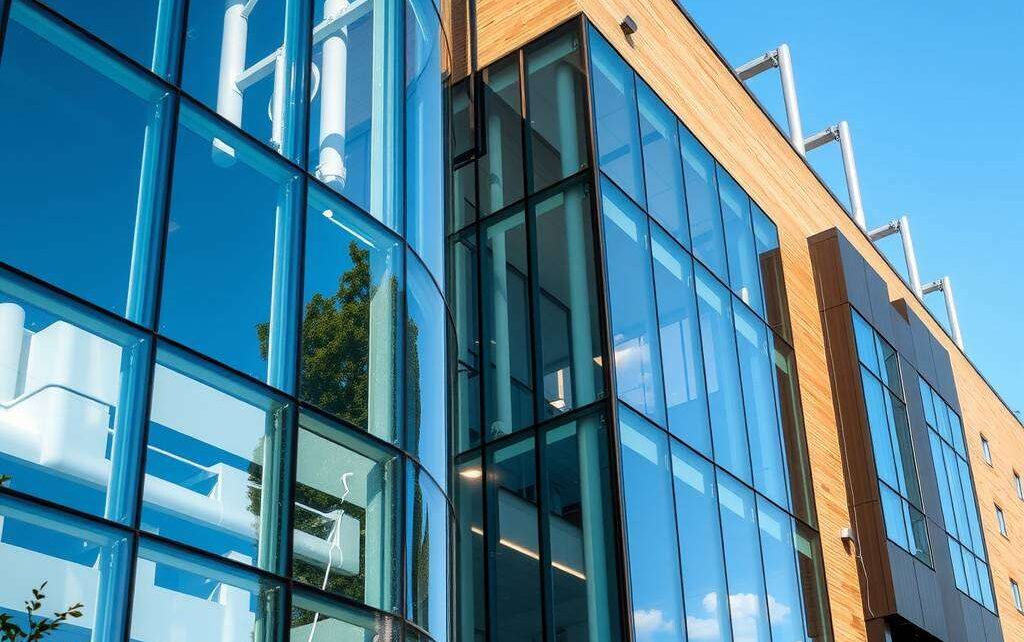

The building envelope is no longer a static shield; it has transitioned into a highly engineered, semi-permeable membrane that manages the volatile exchange of energy, light, and sound. At the heart of this evolution is the glazing system—a complex assembly of glass, polymers, and metallic alloys that defines the architectural identity of the modern cityscape. Architectural Glazing Systems Guide. To view architectural glazing merely as a series of windows is to overlook the sophisticated material science and mechanical coordination required to keep these “glass skins” functional under the immense physical stresses of high-altitude wind loads, seismic drifts, and extreme thermal fluctuations.

Engineering a successful facade requires a reconciliation of fundamentally contradictory goals. Architects demand total visual transparency and millimetric profiles, while building codes and environmental realities mandate high thermal resistance and structural robustness. As we move deeper into an era focused on decarbonization, the glazing system has become the primary site of conflict and resolution in building design. It is the single most influential component in determining a structure’s operational energy consumption and the long-term comfort of its occupants.

The complexity of these systems necessitates a move away from “product-based” thinking and toward “system-based” analysis. A high-performance glazing unit is only as effective as the frame that supports it and the sealants that integrate it into the primary structure. This transition from individual components to integrated assemblies represents a significant shift in the construction industry, requiring a sophisticated understanding of chemistry, physics, and manufacturing logistics. This guide explores the multi-layered frameworks that define the current state of architectural glazing in the American landscape.

Understanding “Architectural Glazing Systems Guide”

Engaging with an architectural glazing systems guide requires an acknowledgment that “glazing” is an umbrella term for a highly fragmented set of technologies. A common oversimplification in the industry is the belief that higher glass specifications—such as moving from double to triple glazing—will universally solve performance issues. In reality, the efficacy of the system is often dictated by its “edge conditions.” The interface where the glass meets the aluminum or steel frame is where 90% of thermal and moisture failures occur. A multi-perspective understanding recognizes that the glass is merely one variable in a complex equation involving thermal breaks, pressure plates, and desiccant-filled spacers.

The risks of oversimplification are particularly acute in the realm of thermal performance. Designers often focus on the “Center of Glass” (COG) U-value, yet it is the “System U-value” that determines code compliance and actual energy expenditure. A high-performance glass pane inserted into a poorly designed, non-thermally broken frame will lead to interior condensation, mold growth, and localized “cold spots” that undermine occupant comfort. Avoiding these failures requires a move toward Integrated Project Delivery (IPD), where the glazing engineer coordinates the tolerance stack-up with the structural consultant long before the first anchor is cast.

Furthermore, the American regulatory landscape adds layers of complexity that vary by jurisdiction. In New York, the focus may be on Local Law 97 carbon limits and bird-safe glazing; in Miami, the absolute priority is High-Velocity Hurricane Zone (HVHZ) impact resistance. This guide serves not as a catalog of products, but as a strategic framework for navigating these competing requirements, ensuring that the selected system is tuned specifically to the building’s geographical and programmatic coordinate.

Deep Contextual Background: The Evolution of the Barrier

The historical trajectory of architectural glazing moved from the “Face-Seal” philosophy of the early 20th century to the “Water-Managed” and “Pressure-Equalized” systems of today. Early curtain walls relied entirely on the integrity of the exterior bead of sealant—a “barrier” approach that assumed a perfect, permanent seal. As these buildings aged, the sealant hardened and failed under UV exposure, leading to ubiquitous leaks. This led to a paradigm shift: the realization that the building envelope should act more like a filter than a dam.

The introduction of the “Rain Screen” principle in the mid-century revolutionized facade design. By creating a vented cavity behind the glass, engineers could equalize the air pressure between the outside and the internal drainage path, effectively neutralizing the wind pressure that drives water through small gaps. As building heights reached new summits and energy codes became more stringent, the glazing had to adapt to higher wind pressures and greater thermal movements. The introduction of “thermal breaks”—polyamide or polyurethane barriers within the aluminum—allowed the “transparent skin” to finally approach the insulating performance of traditional opaque walls.

Conceptual Frameworks and Mental Models

• The “Pressure Equalization” Framework: This model assumes the exterior seal will eventually leak. The real defense is the “air barrier” on the protected side of the drainage cavity. By allowing air to enter a small chamber behind the glass, the pressure inside the frame matches the wind pressure outside, preventing water from being “sucked” into the building.

• The Tolerance Stack-up Model: This is a mechanical framework that acknowledges every component (glass, gasket, aluminum mullion) has a manufacturing tolerance. If ten components are joined, the cumulative error can be significant. Failure occurs when the design does not provide enough “slop” or adjustability in the anchors to accommodate the reality of site construction.

• The “Mean Radiant Temperature” (MRT) Model: This focuses on human comfort rather than just air temperature. It acknowledges that a person sitting next to a “cold” window in winter will feel uncomfortable even if the room’s air is 72°F. The best systems maintain a surface temperature within 3-5 degrees of the interior air.

Key Categories and Technical Trade-offs

Selecting a system involves weighing the inherent physics of different glass constructions against the structural demands of the project.

System Category	Core Technology	Primary Advantage	Technical Trade-off
Unitized Curtain Wall	Factory-assembled panels	High QC; rapid site installation	Higher upfront logistics; inflexible
Stick-Built System	Site-assembled components	Low shipping cost; adaptable	High site-error risk; weather-dependent
Structural Silicone (SSG)	Chemical bonding (no caps)	Seamless, “all-glass” look	Difficult to replace single units
Double-Skin Facade	Two layers with 12″+ gap	Extreme thermal/acoustic damping	Massive weight; high capital cost
Point-Supported Glass	Spider fittings/Cable nets	Maximum transparency	Higher deflection; high cost
Vacuum Insulated (VIG)	0.1mm vacuum space	Wall-like insulation in thin profile	Micro-pillars visible; high cost

Decision Logic: System Selection

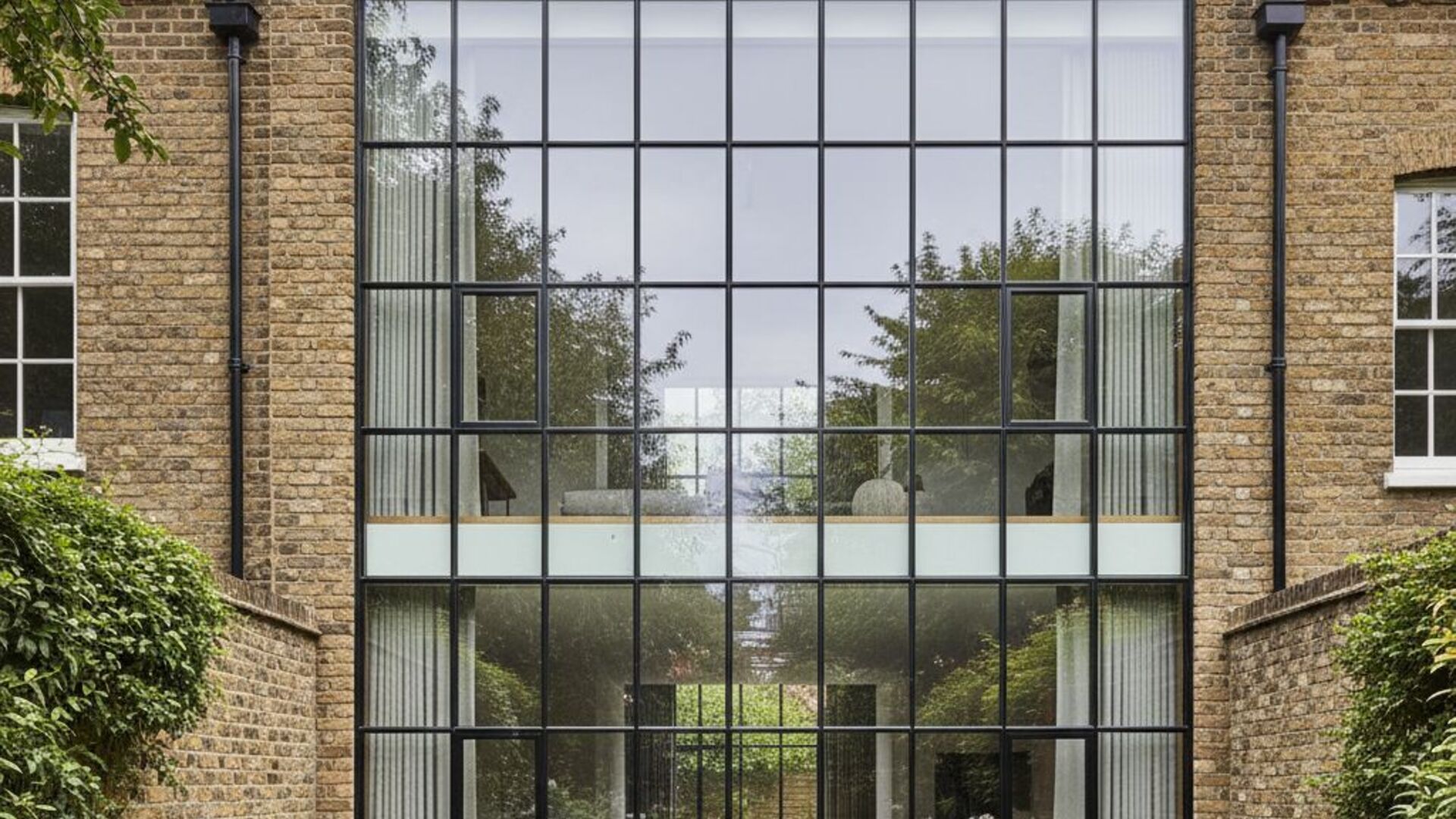

The decision-making process should follow a “Constraint-First” logic. For high-rise commercial towers in urban cores, the constraint is usually “Speed to Market” and “Quality Control,” making a unitized system the logical choice. For complex, low-rise geometries or historic retrofits where frame depth is limited, a stick-built system or VIG may be required to accommodate the unique site conditions.

Detailed Real-World Scenarios Architectural Glazing Systems Guide

Scenario 1: The High-Altitude Thermal Swing

In a mountain resort, the facade faces “extreme diurnal swings”—100°F during the day and 30°F at night. The failure mode here is “thermal stress breakage” if the glass is partially shaded by a balcony while the rest is in direct sun.

• Decision: Specify fully-tempered glass and “warm-edge” spacers to handle the expansion differentials.

Scenario 2: The Coastal Hurricane Zone

The constraint is “impact and cycle.” The glazing must survive a 2×4 timber impact and then endure 9,000 cycles of wind pressure without the glass falling out.

• Decision: Utilize an ionoplast interlayer (SGP) which is 100 times stiffer than standard PVB, ensuring the glass remains a structural barrier even if shattered.

Planning, Cost, and Resource Dynamics

The economics of architectural glazing are heavily skewed toward the “In-Place” cost. While materials are expensive, the cost of replacing a single panel on the 40th floor is exponentially higher than the initial installation.

Budget Factor	% of Facade Cost	Variability Drivers
Glass Fabrication	40% – 50%	Coating type; “Jumbo” sizing
Framing/Aluminum	20% – 30%	Thermal break quality; finish type
Installation/Labor	20%	Height; site accessibility
Testing/QC	5%	Performance mock-ups; field spray tests

Tools, Strategies, and Support Systems

• Hygrothermal Modeling (WUFI): Simulating how heat and moisture move through the assembly over 50 years to predict rot or seal failure.

• Infrared Thermography: Identifying “thermal bridges” where heat is escaping through the frame rather than the glass.

• BIM (Building Information Modeling): Critical for identifying “clashes” between the curtain wall anchors and the structural steel or rebar.

• Acoustic Spectrometers: Tuning the glass lamination to specific urban frequencies (e.g., low-frequency bus rumble vs. high-frequency sirens).

• Spectrophotometers: Used on-site to verify that the glass delivered matches the “spectral signature” of the glass specified.

• Field Water Testing (AAMA 501.2): Using a calibrated nozzle to spray joints under pressure to verify site-work quality.

Risk Landscape and Failure Modes

Failure in architectural glazing is rarely a single catastrophic event; it is usually a compounding taxonomy of risks:

1. Seal Breach (Desiccation): The primary seal of the IGU breaches, allowing moist air into the cavity. This leads to permanent fogging and the loss of the gas fill’s thermal benefits.

2. Anaerobic Gasket Degradation: When water gets trapped behind a gasket and cannot evaporate, it creates a “micro-swamp” that eats the seal.

3. The “Nickel Sulfide” Inclusion: A microscopic impurity that can cause fully tempered glass to shatter spontaneously years after installation.

4. Hardware Seizure: Salt-crystallization in the tracks of sliding glass walls in coastal environments, rendering them inoperable.

Governance, Maintenance, and Long-Term Adaptation

A “pillar” asset requires a rigorous lifecycle governance plan to prevent the degradation of the view and performance:

• Annual Weep-Hole Audit: Clearing dust and debris from the external weep holes to prevent “reservoir” effects inside the aluminum profiles.

• 5-Year Sealant Recalibration: Inspecting the perimeter caulk joints (the “wet seal”) for signs of crazing or loss of adhesion.

• 10-Year Gas Verification: Measuring the concentration of Argon/Krypton within the IGUs to ensure they are still providing the rated thermal performance.

• Cleaning Protocol: Prohibiting the use of abrasive cleaners or “squeegees” on glass with exterior-surface (Surface 1) coatings.

Measurement, Tracking, and Evaluation

• Leading Indicators: Daily Relative Humidity (RH) levels in the building. If RH spikes without a weather change, the glazing seals may be breached.

• Lagging Indicators: Total HVAC kWH usage compared to the energy model’s baseline.

• Qualitative Signal: “Guest Sunlight Tolerance”—tracking how often occupants pull manual shades versus relying on the glazing’s tinting.

• Documentation Example: A “Facade Birth Certificate” for every unitized panel, tracking its batch of glass, the technician who applied the sealant, and the date it was hung.

Common Misconceptions and Industry Myths

• “More silicone is better”: Excess silicone often blocks the “weep” paths, causing water to back up into the building interior.

• “Curtain walls are self-cleaning”: While rain helps, pollutants can etch the glass or degrade the gaskets if not professionally cleaned bi-annually.

• “Triple-pane is always the best”: In some climates, the massive weight of triple-pane requires so much extra structural steel that the “embodied carbon” increases, negating energy savings.

• “Glass is a solid”: In high-performance engineering, glass is treated as a flexible plate that “bows” significantly under wind load.

• “The architect handles the details”: Architects provide the intent; the “glazing engineer” provides the mechanics. Failure often happens in the hand-off.

Ethical and Practical Considerations

The selection of architectural glazing is increasingly an ethical decision. The industry is currently grappling with “The Mirror Effect”—where highly reflective glass in urban centers creates localized “micro-climates” that can melt car parts or damage sidewalks. Furthermore, bird-safe glazing is now a requirement in many North American jurisdictions, requiring the use of UV-visible patterns or fritting to prevent avian collisions without obscuring human views. Responsible design now requires a “Good Neighbor” analysis to ensure one building’s efficiency does not come at the expense of its neighbor’s comfort.

Synthesis

The integrity of the building envelope is the ultimate testament to architectural discipline. Navigating the pitfalls of modern glazing is not about seeking perfection, but about engineering for the inevitable: the inevitable movement of the building, the inevitable pressure of the wind, and the inevitable presence of water. A truly authoritative glazing strategy is one that respects the laws of thermodynamics and the reality of site tolerances. As we move toward 2030, our ability to master these technical nuances will define the difference between a landmark and a liability.
