Point Supported Glass Guide: Engineering Crystalline Transparenc

The evolution of the architectural envelope has been a relentless pursuit of transparency, seeking to minimize the visual interference of structural members. While traditional curtain walls rely on continuous vertical and horizontal mullions to support glass panes, point-supported systems represent a radical departure. By securing glass units at discrete locations using specialized hardware, architects can achieve a level of crystalline clarity that feels almost weightless. Point Supported Glass Guide. This structural discipline, however, introduces a complex set of engineering challenges where the glass is no longer just an infill but a primary participant in the load path of the building.

Executing a successful high-span glass assembly requires a forensic understanding of how stress is distributed at the connection points. Unlike a perimeter-supported pane, which distributes wind loads evenly along its edges, a point-supported unit concentrates these forces into a few square inches of hardware. This necessitates a highly sophisticated approach to material selection, where the ductility of the connectors must balance the inherent brittleness of the glass. The margin for error is exceptionally narrow; a slight misalignment in the supporting steel or a failure to account for thermal expansion can lead to localized fractures that compromise the entire system.

As we look toward the future of urban infrastructure in 2026, these systems are becoming more than just aesthetic statements. They are being integrated with seismic-drift joints, blast-resistant laminates, and high-performance coatings that manage energy while maintaining total visibility. This analysis provides a definitive framework for navigating the technical, economic, and safety requirements of vertical transparency, serving as a comprehensive resource for those tasked with designing and maintaining high-authority architectural assets

Understanding “point supported glass guide”

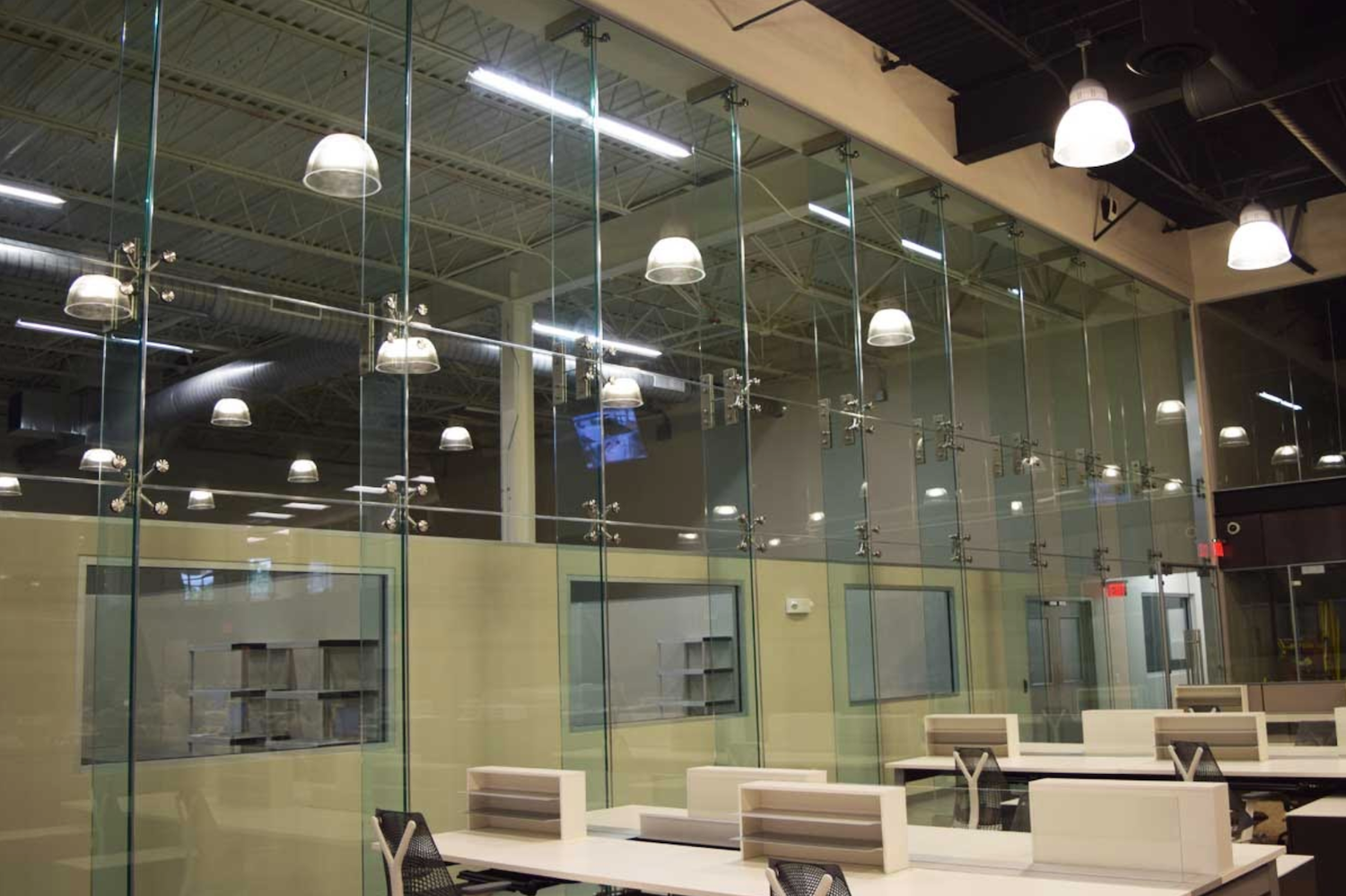

To properly utilize a point supported glass guide, one must first decouple the aesthetic desire for “all-glass” facades from the mechanical reality of brittle material behavior. Point-supported glass (PSG) refers to systems where glass panes are fastened to a backup structure—such as steel trusses, glass fins, or cable nets—using specialized “spiders” or bolted connectors. The fundamental distinction here is the concentration of stress. In a standard window, the glass is “cushioned” by gaskets. In a point-supported system, the hardware often penetrates the glass or grips it with intense pressure, making the “hole” or “grip zone” the most critical point of the entire building envelope.

From a multi-perspective view, the success of these systems is judged by their “articulation.” A superior guide emphasizes that the hardware must be able to move. Because buildings sway, vibrate, and expand with heat, the connectors (often called “rotules”) must have internal ball-and-socket joints that allow the glass to rotate slightly without touching the metal. Oversimplification in this area—treating a glass pane like a rigid piece of wood—is the most common cause of spontaneous shattering in high-rise lobbies and atriums.

The risk of oversimplification also extends to the backup structure. While the glass is the star of the show, the “stiffness” of the supporting steel or cable is what dictates the glass’s survival. If the steel flexes too much, the glass is forced to bend beyond its modulus of rupture. Consequently, a high-authority approach treats the glass and the support as a single, synchronized machine, where every component is designed to accommodate the movements of the others.

Historical and Systemic Evolution of Point-Fixing

The trajectory of PSG began in the late 20th century, specifically with the development of the “Planar” system in the United Kingdom. Prior to this, glass was always held by its edges. The innovation of drilling holes through toughened glass and using countersunk bolts allowed for the creation of the first truly “flush” glass facades. This was a pivotal moment in modernism, as it removed the last visual barrier to total transparency.

The 1990s saw the introduction of “Spider” fittings—cast stainless steel arms that look like arachnids. These allowed a single connection point on the structure to hold the corners of four different glass panes simultaneously. This reduced the amount of steel needed and further increased the “lightness” of the assembly. However, early systems often struggled with water infiltration at the bolt holes, leading to the development of sophisticated silicone sealants and articulated gaskets.

In the contemporary era, we have moved toward “Clamped” systems that do not require drilling. These “pinch” the glass at the edges or corners using high-friction plates. This evolution was driven by the increased use of laminated glass, where drilling holes can sometimes lead to delamination or air bubbles around the penetrations. The historical move has been from “Rigid Bolting” to “Articulated Clamping,” reflecting a deeper understanding of glass as a dynamic material.

Conceptual Frameworks for Concentrated Load Engineering

1. The “Degree of Freedom” Framework

In structural engineering, a “degree of freedom” is a direction in which a component can move. A superior point-supported plan ensures that the glass has enough degrees of freedom (rotation and sliding) so that building movements do not translate into internal stress. If you pin a pane too tightly in all directions, it will eventually explode due to thermal expansion.

2. The “Redundant Load Path” Model

Because glass is brittle, the system must have a “Plan B.” This framework evaluates what happens if a single bolt or a single pane fails. The remaining connectors must be able to “bridge” the load to the surrounding panes or structure to prevent a “zipper effect,” where the entire facade collapses sequentially.

3. The “Hertzian Stress” Mental Model

This focuses on the contact between the metal bolt and the glass hole. Because metal is much harder than glass, any direct contact will cause a “pressure spike.” This model mandates the use of specialized plastic bushings (usually POM or Nylon) that act as a “soft” interface, ensuring the metal never actually touches the glass.

Key Categories of Point-Supported Systems and Hardware

System Type	Connection Method	Best Use Case	Trade-off
Bolted (Countersunk)	Holes drilled in glass	Maximum flush aesthetic	Stress concentrations at holes
Clamped (Spider)	Pressure plates at edges	Laminated glass safety	Slightly more visible hardware
Glass Fin Support	Glass-on-glass	Maximum transparency	Very high cost; complex logistics
Cable Net	High-tension wires	Large, airy atriums	Extremely complex engineering
Steel Truss	Conventional steel	Cost-effective spans	More visual “clutter”

Detailed Real-World Scenarios and Decision Logic Point Supported Glass Guide

Scenario 1: The “Snow Load” Deflection

An atrium in a cold climate features a sloped point-supported roof.

• The Failure: Under a heavy snow load, the center of the glass pane bows downward. Because the bolts were rigid, the “prying” action at the hole caused the tempered glass to shatter.

• The Decision: The plan must utilize “Articulated Rotules” that allow the bolt to tilt up to 15 degrees as the glass deflects.

Scenario 2: The “Seismic Drift” Event

A high-rise in San Francisco utilizes a 40-foot PSG lobby wall.

• The Failure: During a minor tremor, the building frame swayed 2 inches, but the glass wall was fixed too tightly to the slab.

• The Decision: Implementation of “Slotted Spiders” that allow the glass panes to slide horizontally within the hardware during a seismic event.

Planning, Cost, and Resource Dynamics

The implementation of PSG is significantly more expensive than standard curtain walling, often by a factor of $3\times$ to $5\times$. This is due to the precision required in the steelwork and the specialized nature of the hardware.

Component	Cost Driver	Variability Factor
Toughened Laminate	Number of heat-treating cycles	High (Safety requirements)
CNC-Milled Hardware	Stainless steel grade (316 vs. 304)	Medium (Corrosion resistance)
Steel Tolerance	Level of “AESS” (Architectural Steel)	High (Visual finish)
Installation Labor	Need for specialized glazing crews	High (Precision alignment)

Tools, Strategies, and Support Systems

1. FEA (Finite Element Analysis): Software used to map the “Stress Contours” around the bolt holes.

2. BIM Integration: Ensuring that the holes in the glass align perfectly with the holes in the steel—tolerances are often as tight as 1/16th of an inch.

3. Digital Protractors: Used during installation to ensure that the “Spider” arms are perfectly planar.

4. Torque-Wrench Calibration: Over-tightening a bolt in a point-supported system is as dangerous as under-tightening it.

5. Laser Scanning: Mapping the “As-Built” steel structure before the glass is ordered to ensure a perfect fit.

Risk Landscape: A Taxonomy of Failures

• Nickel Sulfide Inclusions: Spontaneous breakage of tempered glass, which is particularly dangerous in PSG because there is no frame to catch the falling shards.

• Sealant Fatigue: Because PSG systems have long runs of silicone joints between panes, these seals are under constant “shear” stress and can fail, leading to leaks.

• Hardware Corrosion: In coastal environments, “tea staining” on stainless steel spiders can eventually lead to structural pitting.

Governance, Maintenance, and Long-Term Adaptation

A point-supported system requires an active “Lifecycle Management” plan. It is not a passive wall.

• Quarterly: Visual check of the silicone “Bead” for signs of tearing or loss of adhesion.

• Annually: Inspection of the rotule gaskets. If the plastic bushings become brittle due to UV exposure, they must be replaced to prevent metal-on-glass contact.

• Post-Event: Any significant wind storm or seismic event triggers a mandatory “Torque Audit” of the primary connection bolts.

Measurement, Tracking, and Evaluation of Integrity

• Leading Indicators: The precision of the “Shop Drawings”; the results of the “Heat Soak” testing at the factory.

• Lagging Indicators: Total number of panes replaced over a 10-year period; the presence of “whistling” noises during high winds (indicating air leakage).

• Qualitative Signals: The “Flatness” of the reflections. If the reflections are “wavy,” it indicates that the glass is under too much internal stress from the hardware.

Common Misconceptions and Industry Myths

• Myth: “Point-supported glass is weaker than framed glass.”

  • Correction: It is actually engineered to higher safety factors because the failure mode is more critical.

• Myth: “You can use standard tempered glass for PSG.”

  • Correction: You must use “Heat-Soaked” toughened glass to mitigate spontaneous breakage risks.

• Myth: “The spider arms carry the weight of the glass.”

  • Correction: The spiders typically only resist wind loads; the “dead load” (weight) is usually carried by the top bolts or a hidden setting block at the base.

Conclusion: Synthesis and Structural Adaptability

The use of a point supported glass guide represents the pinnacle of modern structural glazing. By embracing the complexity of concentrated loads and building movement, architects can create environments that are flooded with light and free from visual obstruction. However, the survival of these systems depends on a commitment to precision—from the initial FEA modeling to the annual maintenance audits. As we move into an era of higher energy standards and increased climate volatility, the ability of these crystalline envelopes to adapt, breathe, and remain resilient will be the ultimate measure of their architectural authority.
