Fire Rated Glazing Overview: The Definitive Engineering Guide

The intersection of life safety and architectural transparency presents one of the most rigorous challenges in modern construction. For decades, the necessity of fire containment meant sacrificing natural light, resulting in “dead zones” within building cores—stairwells and corridors lined with opaque masonry or heavy steel. Fire Rated Glazing Overview. The emergence of sophisticated fire-rated glazing has fundamentally altered this dynamic, allowing architects to maintain visual connectivity and daylighting strategies without compromising the compartmentalization required by international building codes.

However, the field is often fraught with technical density and a landscape of highly specific regulations that can be difficult to navigate. Selecting the correct glazing assembly is not merely a matter of finding a product that won’t break in a fire; it involves a complex calculation of radiant heat flux, hose-stream endurance, and structural integrity under extreme thermal stress. In a high-stakes environment where life safety is the primary metric, a superficial understanding of these materials is a significant liability.

As urban density increases and building heights reach new extremes, the role of fire-rated glass has shifted from a niche specialty to a core component of the building envelope and interior partitions. This evolution demands a forensic approach to material science, where the performance of the glass is inseparable from its frame, sealants, and hardware. This analysis serves as a definitive reference for those tasked with the design, specification, and maintenance of these critical safety assets, providing a framework for navigating the technical and regulatory nuances of the industry.

Understanding “fire rated glazing overview”

To engage with a fire rated glazing overview, one must first differentiate between “fire-protective” and “fire-resistive” glass. This is the most critical distinction in the industry, yet it remains a frequent point of confusion among developers and junior designers. Fire-protective glass is designed to block flames and smoke but does not prevent the transmission of radiant heat. In contrast, fire-resistive glass acts as a thermal barrier, limiting the temperature rise on the non-fire side. Using the wrong classification in a critical exit corridor could result in a space that, while free of smoke, is hot enough to spontaneously ignite nearby materials or cause severe burns to evacuees.

From a multi-perspective view, fire-rated glazing is a system, not a product. A 60-minute glass pane is only effective if it is housed in a 60-minute frame, secured with tested glazing clips, and sealed with intumescent gaskets. The industry relies on stringent testing protocols, such as ASTM E119 or UL 263, which subject these assemblies to a furnace environment where temperatures quickly exceed 1,600°F. The assembly must survive not only the heat but also the “Hose Stream Test,” where a high-pressure blast of cold water is directed at the glowing glass to simulate the impact of firefighting efforts and thermal shock.

The risk of oversimplification lies in assuming that all clear glass with a label is interchangeable. The labeling itself is a forensic record of a product’s limitations: it specifies the rating duration, the testing standard met, and whether it can be used in doors, sidelites, or wall applications. Navigating this niche requires an understanding of how these ratings interact with the specific occupancy type of the building—whether it be a healthcare facility requiring total thermal blockage or a commercial storefront where smoke containment is the primary goal.

Historical and Systemic Evolution of Fire-Resistive Transparency

For over a century, wired glass was the universal solution for fire-rated openings. The embedded wire mesh was not, as many believe, for security or strength; its sole purpose was to hold the glass in place after it cracked under heat. While effective for fire protection, wired glass posed a significant safety hazard—it is not a safety-tempered material, and the wires can cause severe injury if the glass is broken by human impact. This led to a major systemic shift in the early 2000s, where American building codes restricted wired glass in high-traffic areas, catalyzing the development of wireless alternatives.

The next leap came with the invention of ceramic glass. Capable of withstanding extreme thermal shock without shattering, ceramic glass allowed for clear, wireless fire protection. However, like wired glass, it remained protective rather than resistive. To solve the radiant heat problem, engineers developed multi-laminated glass units filled with clear, intumescent interlayers. In the event of a fire, these interlayers turn opaque and expand, creating a rigid heat shield.

Today, the evolution has reached a point where fire-rated glazing can be integrated into high-performance curtain walls. We have moved from the “port hole” mentality—small, wired windows—to total transparency, where 2-hour fire-rated glass walls are indistinguishable from standard non-rated glass. This convergence of safety and aesthetics represents the current state of the art in American architectural glazing.

Conceptual Frameworks for Life Safety Glazing

1. The “Radiant Heat Flux” Framework

This model prioritizes the protection of the “Path of Egress.” It dictates that in areas where people are likely to be trapped or must move slowly (like hospital corridors), the glass must limit the heat on the cold side to a level that prevents human pain and the ignition of clothing.

2. The “Compartmentalization” Mental Model

In this framework, the building is viewed as a series of boxes. The fire-rated glazing is the weak link in the box wall. The model requires the glazing to perform exactly like the surrounding masonry. If the wall is a 2-hour rated barrier, the glass must also be a 2-hour rated barrier, maintaining the integrity of the compartment.

3. The “Thermal Shock Resilience” Model

This focuses on the “Hose Stream” endurance. It assumes that fire-rated glazing will be subjected to catastrophic temperature differentials. The model mandates that the system must maintain its structural position even when the glass is fractured, ensuring that the compartment isn’t breached by the physical impact of firefighting.

Key Categories of Fire-Rated Systems and Trade-offs

Category	Typical Rating	Technical Trade-off	Primary Function
Wired Glass	20-45 Mins	High injury risk; dated aesthetic	Basic smoke containment
Specialty Ceramics	20-180 Mins	High cost; non-thermal resistive	High-temp smoke/flame barrier
Intumescent Laminate	60-120 Mins	Heavy weight; thicker profile	Total heat/flame/smoke barrier
Fire-Rated IGU	60-120 Mins	Complex seals; high depth	External/Energy-active barriers
Butt-Glazed Walls	60-120 Mins	Specialized install; high cost	Seamless, mullion-free aesthetics

Detailed Real-World Scenarios and Decision Logic Fire Rated Glazing Overview

Scenario 1: The “Lobby Exit” Requirement

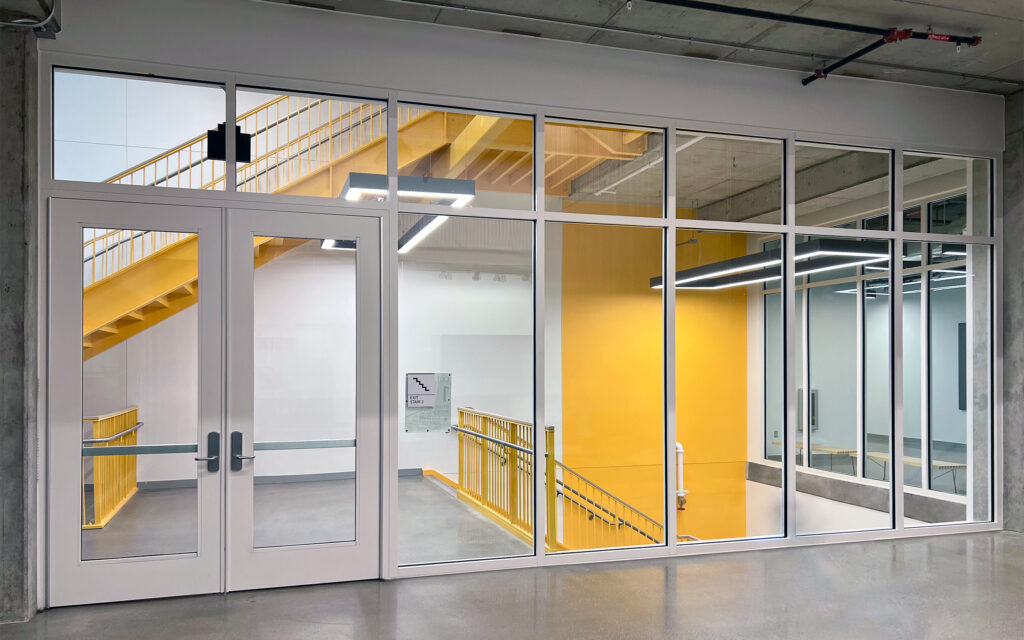

A designer wants a 10-foot tall glass wall separating a lobby from a high-rise stairwell.

• The Constraint: The code requires a 2-hour fire barrier to protect the stairwell from a lobby fire.

• The Decision: Ceramic glass is rejected because it doesn’t block radiant heat. The team must specify a 2-hour fire-resistive intumescent laminate.

• Failure Mode: If ceramics were used, the heat from a lobby fire would radiate into the stairwell, making the “Safe Path” impassable.

Scenario 2: The “Atrium Storefront”

A boutique in an indoor mall faces an open atrium.

• The Constraint: The atrium is used for smoke exhaust, requiring a 45-minute smoke and flame barrier.

• The Decision: Since radiant heat is less of a concern in this open volume, a 45-minute specialty ceramic glass in a narrow-profile steel frame is selected to maximize shop visibility.

Planning, Cost, and Resource Dynamics

The implementation of fire-rated glazing is a high-cost endeavor, often ranging from $100 to $500 per square foot, depending on the complexity of the rating.

Direct and Indirect Cost Variability

Component	Cost Driver	Variability Factor
Interlayer Chemistry	Intumescent vs. Ceramic	High (Material complexity)
Frame Material	Steel vs. Aluminum-Clad	Medium (Aesthetic requirements)
Logistics	Weight of multi-laminated units	High (Craning/Specialized handling)
Compliance	Third-party labeling/Listing	Fixed (Testing overhead)

Support Systems and Implementation Strategies

1. Intumescent Tape/Gaskets: These are the active part of the frame. In a fire, they expand to seal the gap between the glass and the frame, preventing smoke from bypassing the glass.

2. Steel Framing Systems: Unlike standard aluminum, which melts at approximately 1,200°F, fire-rated steel frames maintain their structural shape in the 1,600°F+ furnace environment.

3. Third-Party Labeling: Every piece of fire-rated glass must have a permanent etch (label) that is visible after installation. This is the only way for a fire marshal to verify compliance.

4. Glazing Clips: Specific mechanical fasteners that hold the glass in the frame even if the primary sealants melt away.

Risk Landscape: A Taxonomy of Failures

• The “Field-Cut” Violation: Fire-rated glass, particularly tempered or multi-laminated, cannot be cut in the field. Attempting to trim a piece that is too large destroys its structural integrity and voids its rating.

• Incompatible Frame Usage: Placing fire-rated glass in a standard aluminum storefront frame. In a fire, the glass will fall out as the frame melts, rendering the glass useless.

• UV Degradation: Some older intumescent interlayers can turn yellow or cloudy if exposed to direct sunlight without the correct UV-filters.

Governance, Maintenance, and Long-Term Adaptation

Fire-rated glazing is a passive fire protection asset that requires regular governance to ensure its “Ready State.”

The Maintenance Checklist:

• Annual Inspection: Verify that the permanent UL/Intertek label is still legible.

• Seal Integrity: Check for signs of bubbles or delamination at the edges of the glass, which indicates the fire-resistive interlayer may be failing.

• Hardware Audit: For doors, ensuring the self-closing mechanism is fully functional. A fire-rated door that stays open is a breach of the building’s compartmentalization.

Common Misconceptions and Industry Myths

• Myth: “Fire-rated glass is bulletproof.”

  • Correction: While thick, most fire-rated glass is not ballistic-rated unless specifically engineered for both. The layers are designed for heat, not impact.

• Myth: “Sprinklers eliminate the need for fire-rated glass.”

  • Correction: Most codes require fire-rated glass in specific locations (like exit enclosures) regardless of whether the building is “sprinklered.”

• Myth: “Tempered glass is fire-rated because it’s heat-treated.”

  • Correction: Standard tempered glass will shatter within minutes of fire exposure. It is safety glass, not fire glass.

Conclusion: The Future of Fire-Rated Design

The future of the fire rated glazing overview is one of invisible protection. We are moving toward a landscape where safety and design are no longer in competition. The development of smart fire glazing—glass that can communicate with building management systems or change its properties when heat is detected—is on the horizon.

Ultimately, the goal of fire-rated glazing is to buy time: time for the sprinkler system to activate, time for the fire department to arrive, and, most importantly, time for occupants to exit safely. The best systems are those that fulfill this duty while remaining completely unnoticed during the building’s daily life, serving as a silent, crystalline guardian within the architectural skeleton.
