Sustainable Glazing Examples: A Definitive Guide to High

The architectural envelope has long been a site of tension between the human desire for transparency and the thermodynamic reality of the building’s skin. Historically, windows were the “weak link” in a structure’s thermal defense, responsible for significant heat loss in winter and aggressive solar gain in summer. Sustainable Glazing Examples. As we move deeper into an era defined by carbon accountability and fluctuating energy costs, the role of the glazing system has shifted from a passive infill to a dynamic, high-performance filter.

Achieving true sustainability in glazing requires a departure from the simplistic pursuit of higher $R$-values. It demands a forensic understanding of how glass interacts with the electromagnetic spectrum, how it manages embodied carbon throughout its lifecycle, and how it contributes to the psychological well-being of its occupants through daylighting without inducing thermal discomfort. The complexity of these systems is significant; a high-performance facade in the Pacific Northwest requires a fundamentally different chemical and structural profile than one situated in the humid Southeast or the arid Southwest.

This analysis moves beyond the marketing veneer of “green” glass to examine the systemic requirements of modern transparent assemblies. By deconstructing the chemistry of coatings, the physics of gas fills, and the structural integrity of frames, we can identify a definitive roadmap for high-performance envelopes. This serves as a flagship reference for architects, developers, and sustainability strategists tasked with reconciling the aesthetic of the glass curtain wall with the rigid requirements of net-zero operational goals.

Understanding “sustainable glazing examples”

To properly evaluate sustainable glazing examples, one must move past the binary of “clear vs. tinted.” A truly sustainable example is a site-specific resolution of energy balance. It involves a multi-perspective assessment: the mechanical engineer seeks to downsize the HVAC system through reduced peak loads, the architect seeks to maintain visual connection, and the sustainability officer tracks the embodied carbon of the glass manufacturing process itself.

A common misunderstanding in the industry is that “sustainability” is synonymous with “insulation.” While a triple-pane unit offers superior thermal resistance, its high embodied carbon—due to the extra glass and complex manufacturing—may take decades to “pay back” in operational energy savings. Oversimplification risks are high when designers ignore the “Solar Heat Gain Coefficient” ($SHGC$) in favor of the $U$-value. In many American climates, managing the sun’s heat is far more critical for a building’s carbon footprint than preventing heat loss during the night.

Furthermore, the “best” examples are often those that are invisible. The highest performing coatings are often those that maintain the highest “Visible Light Transmittance” ($VLT$) while aggressively reflecting infrared and ultraviolet radiation. If a glass unit is so dark that occupants must turn on artificial lights during the day, the sustainability of that glazing system is effectively neutralized. Therefore, the metric for success is the “Light-to-Solar Gain Ratio” ($LSG$), which measures the efficiency of a glass type in delivering light without the heat.

Historical and Systemic Evolution of High-Performance Glass

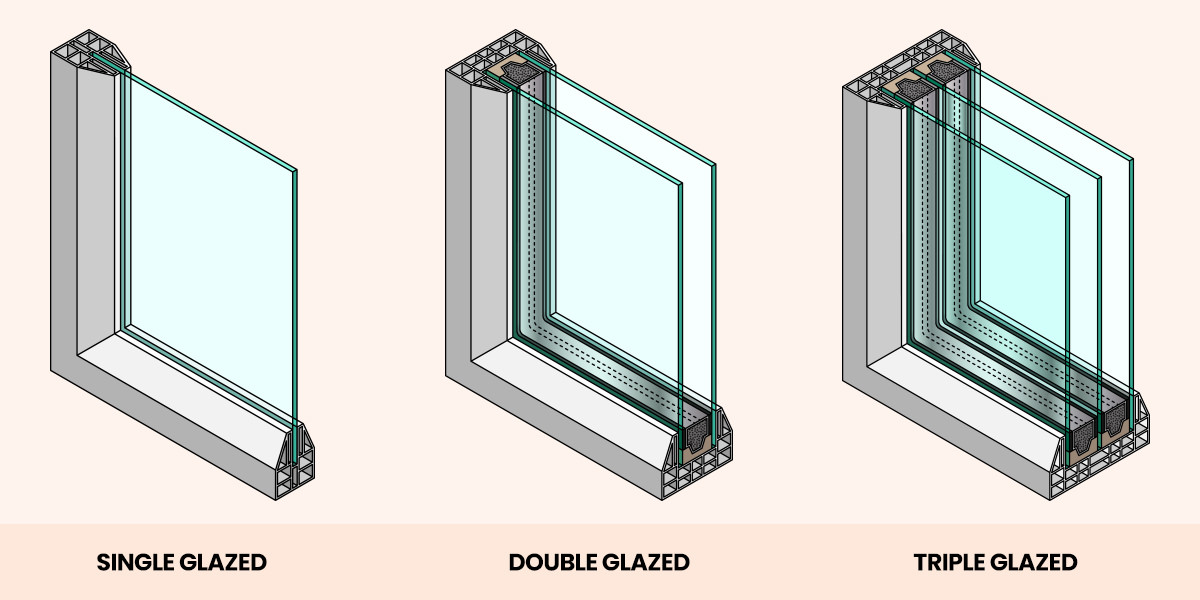

The trajectory of glazing technology has moved from the single-pane “thermal hole” of the early 20th century to the multi-layered, spectrally selective membranes of today. The first major systemic shift occurred with the introduction of “Insulated Glass Units” ($IGU$) in the post-war era, which used a dead air space between two panes to slow heat transfer. However, these early units were prone to seal failure and offered limited protection against solar radiation.

The 1980s brought the revolution of “Low-Emissivity” ($Low\text{-}E$) coatings. By applying microscopic layers of silver or other metals to the glass surface, manufacturers could reflect long-wave infrared energy (heat) back to its source. This turned glass into a one-way valve for energy. The systemic evolution continued into the 2000s with the refinement of “Sputter-Coating” technology, allowing for multiple layers of silver that could be fine-tuned for specific climates.

Today, we are witnessing the rise of “Dynamic” and “Vacuum” technologies. We have moved from static solutions to those that can adapt. Vacuum Insulated Glass ($VIG$), for instance, achieves the insulation performance of a thick wall in the profile of a single pane. This historical arc represents a shift from glass as a “barrier” to glass as a “processor” of energy.

Conceptual Frameworks for Transparent Thermal Defense

1. The “Energy Balance” Framework

This model suggests that every window is a net energy contributor or a net energy drain. In winter, a window should act as a solar collector (high solar gain); in summer, it should act as a heat shield (low solar gain). Sustainable glazing examples are those that balance these conflicting seasonal requirements.

2. The “Embodied vs. Operational” Carbon Framework

This framework evaluates the total carbon life of the unit. It requires a “Life Cycle Assessment” ($LCA$) to determine if the carbon required to mine, melt, and transport a triple-pane unit is justified by the energy it will save over its 25-year lifespan.

3. The “Envelope-as-a-Machine” Mental Model

Instead of seeing a window as a hole in the wall, this model views it as a component in a mechanical system. If the glazing is high-performing enough, the perimeter heating system can often be eliminated entirely, leading to massive reductions in copper, steel, and mechanical complexity within the building.

Key Categories of Sustainable Glazing Systems and Trade-offs

Category	Typical Use Case	Technical Trade-off	Carbon Impact
Triple-Pane IGU	Cold climates	High insulation vs. High weight/cost	High Embodied Carbon
Vacuum Insulated ($VIG$)	Retrofits	Slim profile vs. High manufacturing cost	Low Operational Carbon
Electrochromic	High-sun exposure	Auto-tinting vs. Electrical complexity	Variable (Saves HVAC)
Aerogel Infill	Industrial/Translucent	Extreme insulation vs. Zero visibility	Low Operational Carbon
Bird-Safe Fritting	Urban centers	Wildlife safety vs. Visual “clutter”	Ethical/Ecological value
BIPV (Solar Glass)	Vertical facades	Power generation vs. Lower $VLT$	Net-Positive Potential

Detailed Real-World Scenarios and Decision Logic Sustainable Glazing Examples

Scenario 1: The “Jumbo” Glass High-Rise

A developer in New York City wants 10-foot-tall clear windows for a luxury tower.

• The Constraint: Local Law 97 mandates strict carbon limits. Clear glass creates a massive cooling load.

• The Decision: Specify a “Triple-Silver” $Low\text{-}E$ coating on low-iron glass. This maintains the ultra-clear aesthetic while reflecting 70% of solar heat.

• Failure Mode: Using standard tinted glass would meet the energy code but lower the $VLT$ so much that artificial lighting would be required all day, increasing the building’s net carbon.

Scenario 2: The Historic Retrofit

A 1920s brick schoolhouse in Chicago is being converted to apartments.

• The Constraint: Original window frames are narrow and cannot hold a heavy triple-pane unit.

• The Decision: Use Vacuum Insulated Glass ($VIG$). At only 8mm thick, it fits in the original frames but provides the insulation of a 1-inch thick $IGU$.

• Failure Mode: Replacing the windows with standard double-panes would require replacing all the historic frames, significantly increasing the project’s embodied carbon and destroying historical value.

Planning, Cost, and Resource Dynamics

The economics of sustainable glazing are often misunderstood as “premium-only.” While the initial material cost is higher, the “Avoided Cost” of mechanical systems often leads to a neutral or positive net-present value.

Direct and Indirect Cost Variability

Component	Cost Driver	Variability Factor
Glass Substrate	Low-Iron vs. Standard	Medium (Aesthetic choice)
Coating Type	Passive vs. Solar Control	Low (Standardization)
Gas Fill	Argon vs. Krypton vs. Vacuum	High (Argon is standard; others are premium)
Framing	Thermal Break quality	Medium (Crucial for performance)

Operational Savings Table:

| Strategy | Upfront Premium | HVAC Downsizing Potential |

| :— | :— | :— |

| High-Performance $Low\text{-}E$ | $+5\%\text{–}10\%$ | $15\%\text{–}20\%$ |

| Triple-Pane Assembly | $+20\%\text{–}30\%$ | $30\%\text{–}40\%$ |

| Dynamic Tinting | $+100\%+$ | $25\%$ (Solar peak only) |

Tools, Strategies, and Support Systems

1. Spectrophotometry: Tools used in labs to measure the exact percentage of light and heat passing through each layer of a sustainable glazing examples assembly.

2. Thermally Broken Frames: A sustainable window is useless if the aluminum frame conducts cold directly into the building. High-performance “Polyamide Struts” are essential.

3. Warm-Edge Spacers: Replacing traditional aluminum spacers in an $IGU$ with stainless steel or plastic to prevent condensation and heat loss at the edges.

4. Angle-Dependent Simulation: Sophisticated software that calculates how solar gain changes as the sun moves, ensuring the building stays cool at 4:00 PM on a July afternoon.

5. Desiccant Management: In multi-pane units, the desiccant must be of high enough quality to prevent internal fogging for at least 30 years to avoid premature replacement.

Risk Landscape: A Taxonomy of Failures

The primary risk in sustainable glazing is “Performance Gap”—where the windows don’t perform as well in the field as they did in the simulation.

• Thermal Stress Breakage: When high-performance coatings reflect too much heat back into the glass, causing the center to expand much faster than the shaded edges.

• Seal Failure (Seal-Out): If the secondary seal of an $IGU$ fails, the Argon gas leaks out and moisture leaks in. The window’s insulation value drops by 50% instantly.

• Gas Dissipation: Even the best seals leak approximately 1% of their gas per year. After 25 years, a high-performance window may simply be an average one.

Governance, Maintenance, and Long-Term Adaptation

A glazing system is an “Active Asset.” It requires monitoring to ensure it continues to meet its carbon targets.

The Sustainability Checklist:

• Annual: Inspect the “Thermal Break” for signs of cracking or dust buildup that could lead to “Cold Bridges.”

• Bi-Annual: Check the perimeter caulking. A sustainable window that leaks air is no longer sustainable.

• Life-End Strategy: Ensure that the glass and frames can be separated. Sustainable glazing should be designed for “Cradle-to-Cradle” recycling, where the glass can be cullet-fed back into a furnace.

Measurement, Tracking, and Evaluation of Efficiency

• Leading Indicators: NFRC ($National\ Fenestration\ Rating\ Council$) labels that provide certified $U$-values and $SHGC$.

• Lagging Indicators: Utility bills and “Post-Occupancy Surveys” regarding glare and thermal comfort.

• Qualitative Signals: “Mean Radiant Temperature” ($MRT$). A sustainable window feels “neutral” to the touch in winter, whereas a poor window feels like a block of ice, forcing people to move away from the light.

Common Misconceptions and Industry Myths

• Myth: “Triple-pane is always better than double-pane.”

  • Correction: In temperate climates, the embodied carbon of the third pane may never be offset by the tiny operational savings.

• Myth: “Tinted glass is the best for solar control.”

  • Correction: Tinting absorbs heat into the glass, which then radiates into the building. $Low\text{-}E$ coatings reflect the heat away before it enters.

• Myth: “Argon gas is dangerous if it leaks.”

  • Correction: Argon is an inert, non-toxic gas that makes up 1% of the air we breathe. The only danger is to the building’s energy bill.

Conclusion: Synthesis and the Future of the Envelope

The pursuit of sustainable glazing is a journey toward the “Active Envelope.” We are moving toward a future where windows are not just insulators, but power generators and light-management systems. The sustainable glazing examples we see today—from $VIG$ retrofits to $BIPV$ facades—are the early iterations of a building skin that functions more like a biological membrane than a static wall.

The definitive judgment of a glazing system is its ability to balance the cold math of thermodynamics with the subjective needs of the human inhabitant. By prioritizing site-specific engineering over “off-the-shelf” solutions, we can create structures that are both transparent and resilient, proving that the glass box doesn’t have to be a climate liability.
